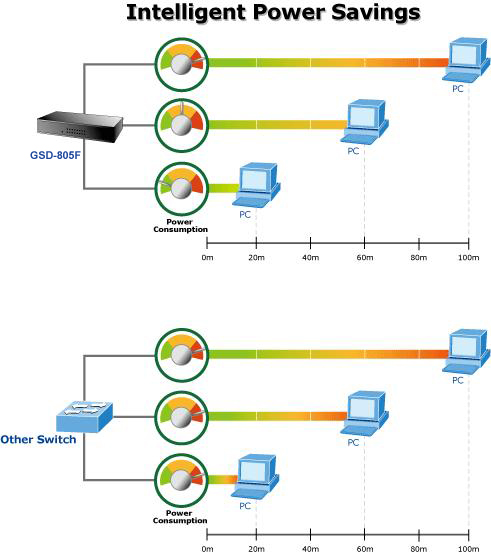

Energy-SavingThe GSD-805F uses new engine that provides energy saving up to 40% less energy than normal Switch but not reduce the performance. The GSD-805F incorporates two advanced Green Networking technologies:　• Idle Mode Link Down power saving　• Intelligent Scales Power based on cable lengthThe Idle mode Link Down power saving of the GSD-805F complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. With the Idle mode Link Down power savings technology, the GSD-805F will automatically adjusts power usage of the ports that are shutdown or not connected to network device. The other green technology adopted, Intelligent Scales Power, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When connecting to the GSD-805F with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-805F would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving.

Full Range Internal Power SupplyWith the compact metal housing design and equipped with a full range internal power supply, the GSD-805F is ideal for easy installation for desktop or space-limited environment. With the convenient internal power feature, users can directly plug the device's power cable in the outlet without worry of additional cumbersome power adapter affecting the installation.
EuP / ErP ReadyTo comply with European Union's Energy-using Products (EuP) Directive for further reduction of the energy consumptions, the GSD-805F is built with a power switch offering off mode and standby mode selection at its rear panel. The PLANET Green Networking Switch greatly helps to eliminate the power consumption at home, lower the business operation cost and fulfill the responsibility of a corporate citizen.

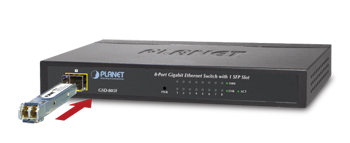

Lead Home, SOHO and Workgroup users into High-Speed Networking GenerationAs the increasing popularity of Desktop and Laptop with built-in Gigabit Network Interface, and widely application of Share Database Device and Multi-Media Center day by day, super high speed Ethernet Switch is expected to become the main stream in the market. PLANET GSD-805F Gigabit Ethernet Fiber Switch is especially designed with metal compact housing to bring easy deployment of Gigabit networking for home, SOHO or enterprises.
High PerformanceProviding 16Gbps internal switching fabric and 9k jumbo frame ability, the GSD-805F can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The GSD-805F provides 8K MAC address table and 1Mbits buffer memory. It offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network upgrading to a Gigabit environment.
Plug & PlayAll RJ-45 copper interfaces in the GSD-805F support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It supports standard Auto-MDI / MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
